Beskrivning
Art.nr: 1123
| Unit (W x H x D mm) | 442 x 129 x 396 |
| Cabinet Size | 442 x 129 x 380 |
| Net weight | 7.5kg |
| Packaging Dimensions (W x H x D mm) | 525×249×511 |
| Packaging gross weight | 10.2kg |
| Carton Color | 1 Color (Material color Brown Printing Black) |
| Cushion / Packing | 4 Separate / Sheet |
| Panel Color | SG / BL |
| Front (Center) Panel | Alminum |
| Back-shell | Mold |
| Side cover | SECC t0.8mm with 2 straight parting line |
| Top cover | SECC t0.8mm with 2 straight parting line |
| Side screw | Copper plated Φ4mm |
| Chassis Material | SECC t1.0mm |
| Bottom Layer | Double Bottom 1st plate : t1.0mm |
| Function button | Mold SG : Alminum deposition |
| Rotary Knob | Mold SG : Alminum deposition (Phones) |
| Power button | Mold SG : Alminum deposition |
| Foot | ABS resin with rigid rib w/Spray Painting (H : 15mm) |
| Other | Continuity ID |
| Frekvensomfång | USB DSD:2Hz - 50kHz (-3dB) USB PCM:2Hz - 50kHz (-1.5dB) CD:2Hz - 20kHz |
| Harmonic distortion | USB DSD :0.0006% USB PCM 24bit: 0.0005% CD: 0.0015% |
| S/N | USB DSD: 110dB USB PCM 24bit: 118dB CD: 118dB |
| Dynamikomfång | USB DSD: 110dB USB PCM 24bit: 118dB CD: 101dB |
| Line Output Level | 2.2Vrms |
| Headphone Output Level | 28mW / 32 ohms |
| Power Consumption | 38W |
| at Standby | 0.3W |
| Output Circuit | New HDAM + HDAM-SA2 |
| Power Transformer | EI |
| Headphone Circuit | High slew rate op-amp + HDAM-SA2 |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
| (DE)PURE DIRECT / (MZ) AUDIO EX | No (Digital Out On/Off+Dimmer) |
| DAC Circuit | ES9016K2M |
| Digital Filter | Filter 1, 2 Selectable |
| DAC Master Clock Design (Not Support Network Playback) | No activate ASRC in ES9016K2M |
| Mechanism | JTL101Y |
| Disc Type | CD / CD-R / CD-RW |
| MP3 | Yes |
| WMA | Yes |
| Firmware Update | Yes |

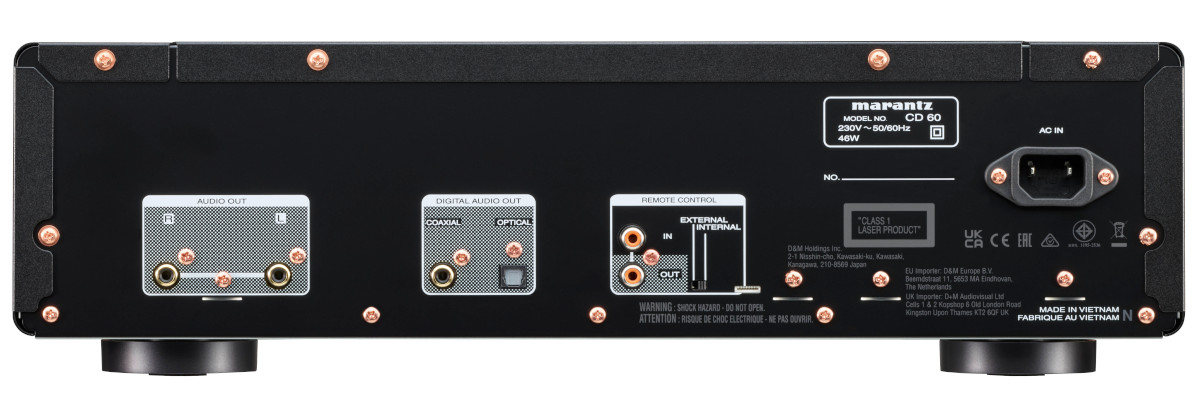

| Fixed Analog Output (RCA) | 1 (Gold Plated) |
| Optical input / output (Maximum Support) | 0 / 1 |
| Coaxial input / output (Maximum Support) | 0 / 1 |
| Headphone Output | 1 |
| Remote Control Bus Terminal | Yes (RC-5 In / Out) w/ External / Internal Select Switch |
| Flasher Input | Yes (U ver) |
| AC Inlet | Yes |
| USB A | 1 (Front) Mass Storage Class 5V/1A |
| Module or Main Device | MLC3730S |
| Support format | FAT 16/32 |
| AAC | Yes |
| WAV | Yes (~192kHz/24bit) |
| FLAC | Yes (~192kHz/24bit) |
| ALAC | Yes (~96kHz/24bit) |
| AIFF | Yes (~196kHz/24bit) |
| DSD (DIFF / DSF) | Yes(~5.6MHz) |
| DSD Native Playback | Yes |
| USB Firmware Update | Yes |
| Remote Controller | System Remote (Amp and CD Player Control) |
| Unit control (Button) | Tact Switch : 7 POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev |
| Unit control (Knob) | 1 Phones Level |
| LED | Protection: 1 Red |
| Front Panel Display | FLD 5x7Dots 16dgits, 2Line CIG25-1607N |
| Display Language | Alphabetical |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
| Synchronously turn on amplifier and switch the input (Use Remote Control Bus) | Yes |
| USB Plug-in Play | No |
| Last Function Memory | Yes |
| Timer Play (Need external audio timer) | Yes On/Off selectable in Menu |
| Auto Standby Mode | Yes |
| Other | Yes |
| Accessory Box | Yes |
| Owner's Manual | Web Manual N (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) U: (English, French, Spanish) K: (Simplified Chinese) F: (Japanese) Paper F: (Japanese) |
| Quick Start Guide | Paper N: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) U: (English, French, Spanish) K: (Simplified Chinese) F: (Japanese) |
| Remote Controller | Yes (Continuity ID) Mold Top |
| Battery | Yes (AAA x2) |
| Power Cord | Yes |
| Other | Stereo RCA Cable x1 Remote connector cable x1 |
