JVC DLA-NZ500
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Vi prismatchar gärna!
- Frågor? Ring oss! 08-520 21347
- Flera olika betalningslösningar
- Fri frakt på order över 3000:-
Behöver Du hjälp? Hör av dig! Ingen fråga är för dum för att ställa!
- SkickNy
- TillverkareJVC
- VarumärkeJVC
Beskrivning
Art.nr: 906

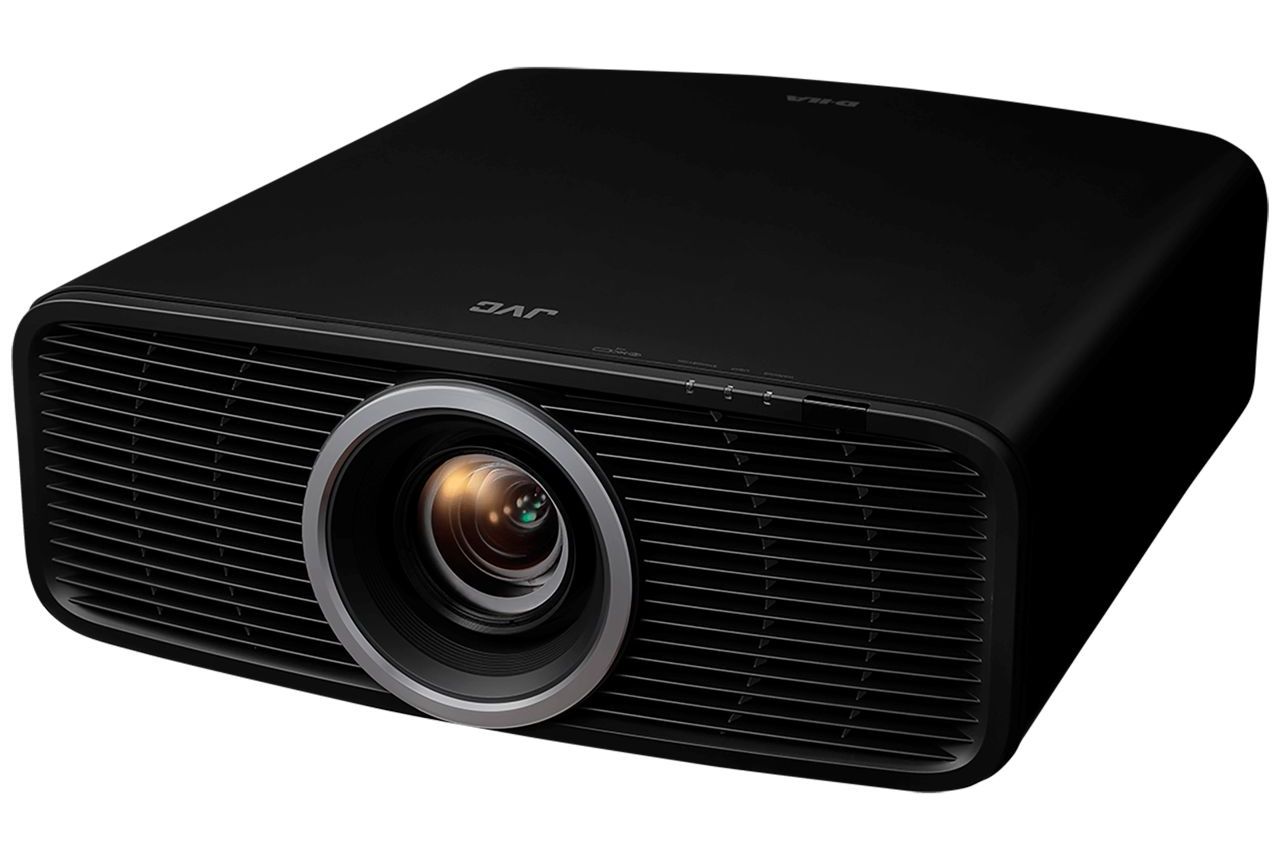

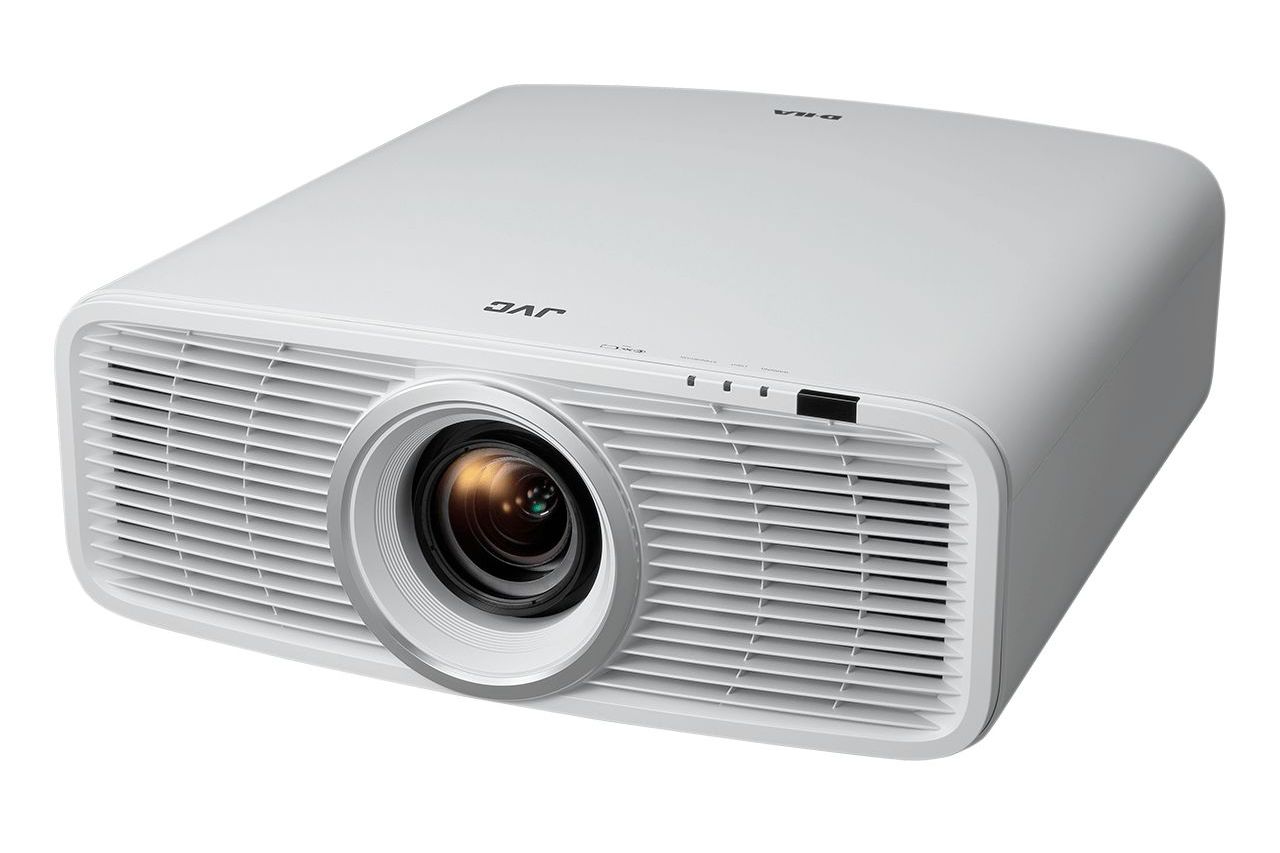

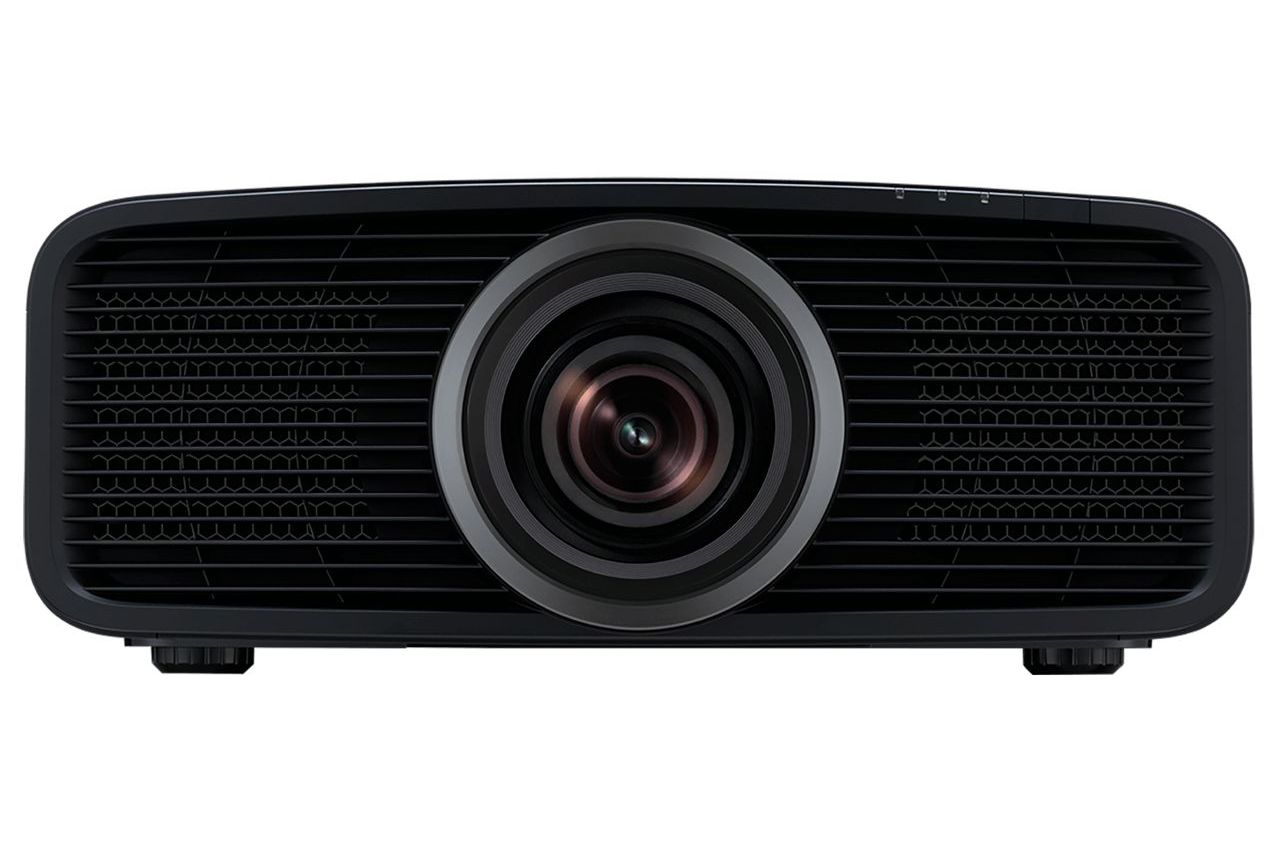

JVC DLA-NZ500 4K äkta 4K Laserprojektor
• 2.000 Ansi lumen
• Hög kontrast, 40.000:1 Native
• Stöd för HDR10+
• Påkostad optik
• Motoriserad zoom/fokus/lensshift
• Fem linsminnen.
OBS vill du montera JVC DLA-NZ500 i taket behövs ett specialfäste samt en adapterplatta.
Hör av dig för mer information
• 0.69-inch Native 4K D-ILA Devices (x3)
• 40,000:1 native contrast
• New BLU-Escent Laser 2,000-lumen
• Gen2 Frame Adapt HDR with Deeper Blacks
• New Picture mode “Vivid”
Features
• Completely redesigned interior and exterior results in world's smallest native 4K projector
• 0.69-inch 4K D-ILA (4096 x 2160) device x 3
• New BLU-Escent Laser Light Source
• High brightness of 2,000 lm provides vibrant and dynamic images
• New 80mm, 15-element, 11-group high-quality lens
• Native Contrast Ratio of 40.000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
• 2x HDMI (32 Gbps, HDCP 2.3) inputs, supporting 4K60P input signals
• HDR10+ metadata supported to automatically reproduce images as the creator intended.
• Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images. It includes improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.
• Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
• FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
• For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
• ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
• Color Management System with 6-axis Matrix
• Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
• Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
• Auto-Calibration Function using an optical sensor.
• New picture mode ”Vivid” for SDR Images
• DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience
DLA-NZ500 - D-ILA Projector
Device
- D-ILA Technology : Yes
Chip Type: 0.69-inch 4K D-ILA device
- Native Resolution: 4096 x 2160
- Number Of Chips: 3
- Display Resolution: 4096 x 2160
- Brightness: 2000 lm
- Dynamic Contrast: ∞ : 1
- Native Contrast: 40000 : 1
- Dynamic Light Power control: Yes
- Modes: Low,High,Balance,Off
- Manual Aperture: Yes
- Range: -15 (stops down) to 0 (opens up)
- 100% REC 709: Yes
- Color Bit Depth: 12 bit
- ISFccc Certification [2]: Yes
HDR
- HDR10 : Yes
- HDR10+ [3] Yes
- Frame Adapt HDR [4] Yes
- HLG Yes
- Mastering Info Display: Yes
- Info data: MaxCLL, MaxFALL , DML
- HDR Picture Modes: BT.709 / BT.2020 / DCI / HDR
Lens
- Zoom: 1,6 x
- Throw Ratio
- 1.34 - 2.14 (16:9)
1.26 - 2.01 (17.9)
- Diameter: 80 mm
- Material
- Build: 15-element, 11-group.
- Lens Shift: Yes
- Range Horizontal:± 28 %
- Range Vertical: ± 70 %
- Motorized Zoom: Yes
- Motorized Shift: Yes
- Motorized Focus: Yes
- Projection Display size (diagonal): 60 - 200 inch
- Memory Function: Yes
- Number of user presets: 5
- Lens Cover: Yes

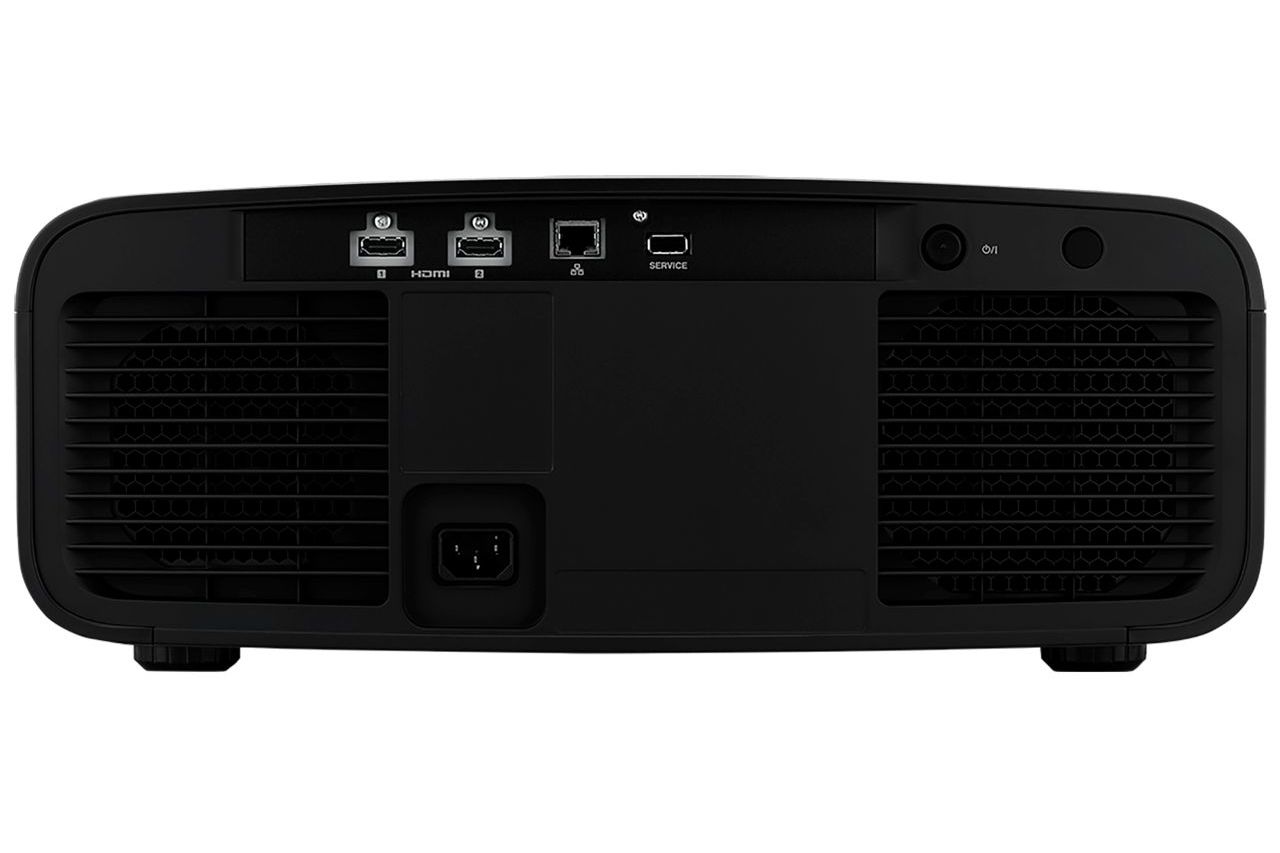

HDMI
- HDMI [6] : Yes
- Number of Inputs: 2
- Data Rate: 32 Gbps
- HDCP Version: 2.3
- 4K60P signal input: Yes
- Video Signal range
- 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
- PC Signal range
- 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
- Input Level Adjustment
- Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
- Color Space Range
- Auto/ YCbCr444 / YCbCr422 / RGB
- EDID Modes
- Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings)
- Connector
- Power
- Connector
- LAN : Yes
- Connector: RJ45
- service PORT: Yes
- Connector: USB (Type A) for firmware update or backup
Picture Settings
- Picture Modes
- Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
- Color Temperatures
- Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
- Gamma Processing Depth: 12 bit
- Gamma Adjust
- HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, 3 Custom modes
- Color Management: 6-Axis adjustable CMS
- MPC: Yes
- Filmmaker Mode [7]: Yes
- Auto Calibration: Yes
- Optional Probe needed: Yes
- Installation Mode: Yes
- Number of modes: 5
- Included settings
- Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
- Anamorphic Modes: 4 Modes (A, B, C, D)
- Control4 SDDP: Yes
Power & Environment
- Power Requirement
- AC100-240V, 50/60Hz
- Projector in Use
- 280W
- Standby
- Eco-mode: 0.25W
- Network Standby
- 1.40W (LAN)
- Switchover time
- Approx. 15 min. (To standby or networked standby; default)
- Fan Noise
- 23 dB
- Eco Mode
- Yes
- Standby Timer
- Yes
- Operating Temperature
- 5°C to 35°C
- Operating Humidity
- 20% to 80%
- Installation Angle
- Horizontal +/- 10 degree / Vertical +/- 10 degree
- Installation Height
- Below 2,000 m
In the box
- Remote Control
- Yes, RM-MH27
- Quick Guide
- Yes
- Power Cord
- Yes
- Batteries
- Yes, 2 x AAA-size batteries
Dimensions & Weight
- Product Dimensions (WxHxD)
- 450 x 180 x 479 (mm)
- Product Weight
- 15 Kg
