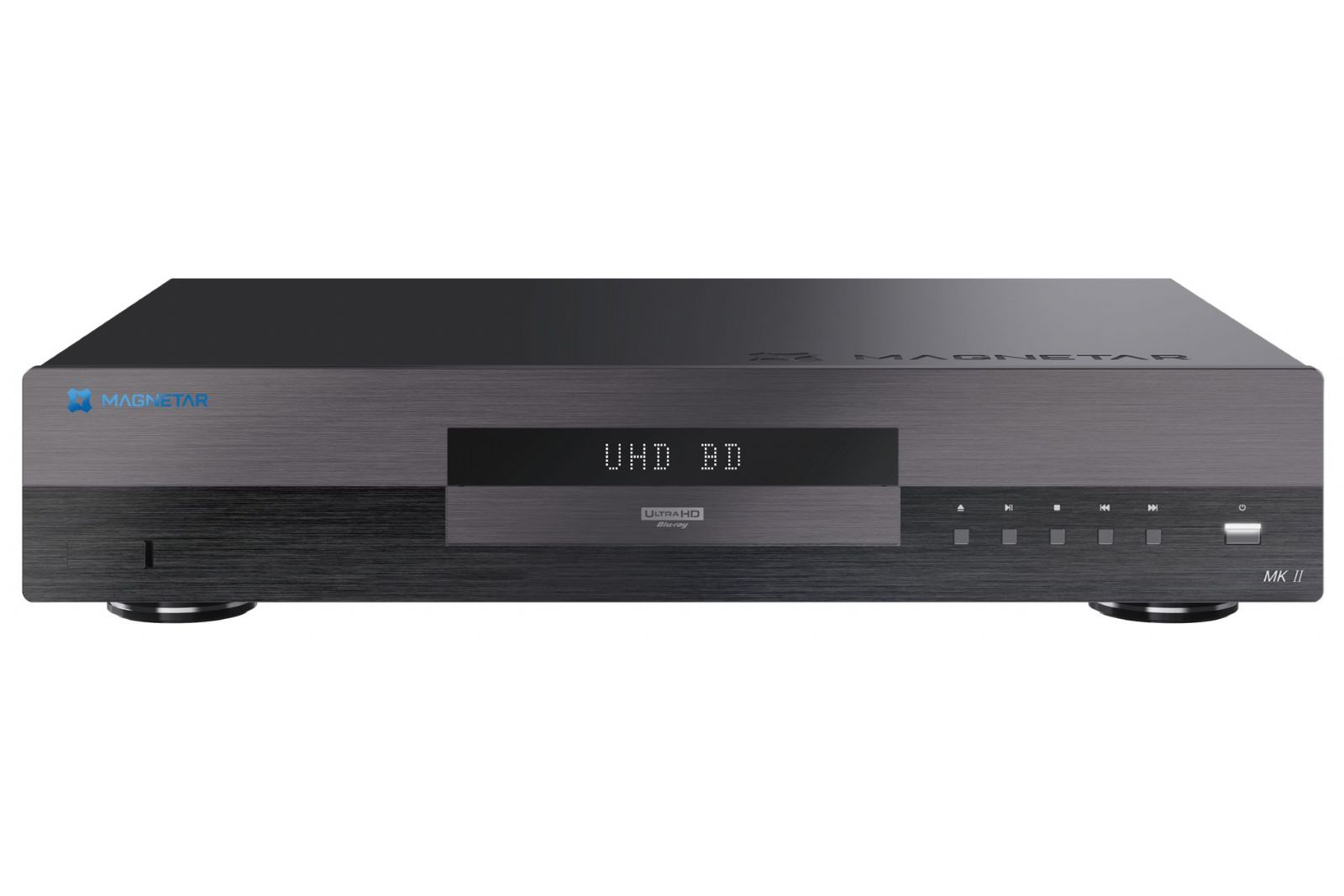

Magnetar UDP800 MKII

Magnetar UDP800 MKII

Roon Ready in certification
Newly redesigned 2.0 audio boards with seven OPA1602 op-amps
TMDS retiming on HDMI audio port
Enhanced USB 3.0 system with isolated power
Upgraded copper wiring and Amphenol/JST connectors
Control 4 Support
Crestron Support



Highlights:

• 4K UHD Blu-ray universalspelare
• Dolby Atmos, Dolby True HD, DTS:X, DTS HD MA
• HDR inkl. Dolby Vision och HDR10+
• Stödjer även CD, SACD och DVD Audio
• 4-kärnig MediaTek MT8581 processor
• TMDS retiming på HDMI-utgången
• 2 x Burr-Brown PCM1795 DAC
• Guldpläterade utgångar både RCA & XLR
• Nya transformator med tvåstegsfiltrering
• Massivt chassi i metall + frontpanel i aluminium.

• Kan även erbjudas som regionfri mot ett tillägg.
- Detta innbär att Du kan köpa film från hela världen, utan begränsningar...

Advanced Image/Audio Processing Technology

High-quality copper-core wires are used throughout the device, the in-machine PCB connectors have been upgraded to JST and Amphenol brands, enhancing the stability and reliability of the connections.



Stunning Audio - Visual Quality

Adding the TMDS retiming function to the mainboard’s HDMI AUDIO port, which can effectively compensate for random jitter, provide better signal quality and load-carrying capacity, and further improve the HDMI audio quality, making the sound details richer.



Versatile Compatibility

Adding a USB3.0 HUB chip and redesign the USB3.0 power supply to improve the compatibility and stability of the USB3.0 port, so as to better adapt to USB flash drives and hard drives. The optimization also enhances the stability of data transmission and increases the transmission speed, thus achieving better sound and picture effects.



Operational Amplifier

Replacing the operational amplifiers with seven OPA1602s.  Its low noise reduces audio distortion for clearer sound. High precision ensures accurate signal reproduction, creating audiophile-grade sound.

Tekniska specifikationer:

Disc formats:

• UHD 4K Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, SACD,DVD-Audio,
• AVCHD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

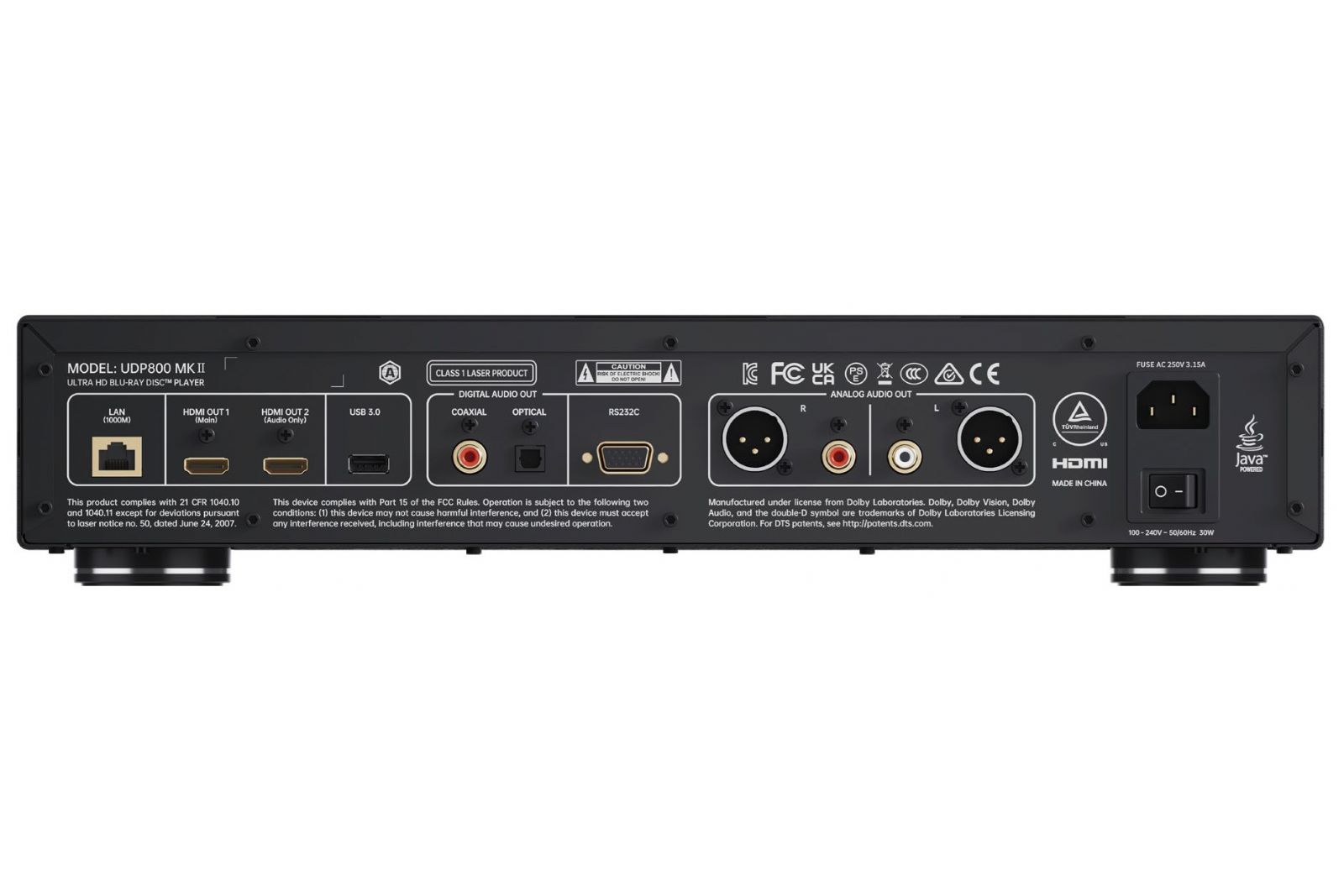

Outputs:

• Analog audio: stereo
• Independent stereo analog audio: XLR balanced output, RCA output
• Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS
• HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD,
Bitstream
• HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.

Analog audio characteristics:

• Frequency range: 20Hz-20kHz (±0.05dB)
• Signal-to-noise ratio: ≥120dB
• Total harmonic distortion + Noise: & LT: 0.00018%
• Output level: (RCA) 2. 1±0.2Vrms; (XLR) 4.2±0.4Vrms
• Dynamic range: AGT: 120dB
• Channel separation:  ＞100dB (RCA); ＞120dB (XLR)

General specification:

• Power supply: AC 100-240V ~, 50/60Hz
• Power consumption: <30W, Standby<0.5W
• Size: 430 mm x 300 mm x 90 mm
• Weight: 6.8kg
• Operating temperature:  5° C ~ 35° C （41° F ~ 95° F）
• Operating humidity: 15% ~ 75%
