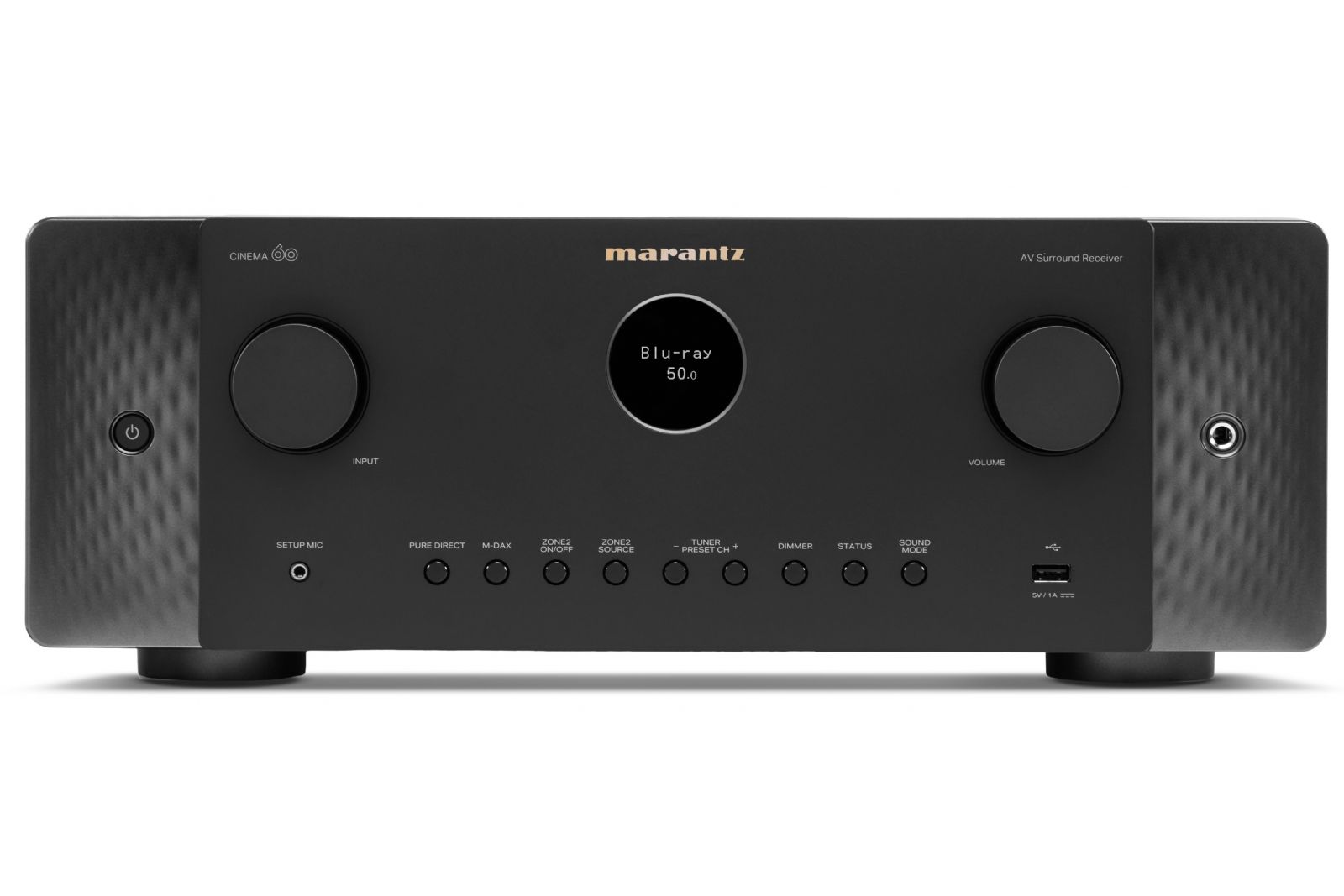

Marantz Cinema 60

Nya Marantz Cinema 60

7.2 kanaler | 100 watt per kanal AV-receiver

Högpresterande 7.2-kanals AV-receiver med 100 watt per kanal förstärkning, Dolby Atmos, DTS:X, 8K Ultra HD och HEOS streaming inbyggt. CINEMA 60 är den nya standarden för lyxiga hemmabiosystem.

Byggda på årtionden av rikt arv, designade med tidlös stil och konstruerade för yttersta prestanda, utgör Marantz receivrar i CINEMA-serien fundamenten i världens mest krävande hemmabiosystem.

OBS! Marantz Cinema 60 erbjuds i två olika version med och utan DAB (Radio).

Enastående prestanda

Omslutande rymd, varm och fyllig ton samt naturtrogen dynamik är legendariska kännetecken för Marantz ljud.

Ledande teknologi

CINEMA 60 är fylld med de senaste immersiva ljudformaten, 8K-video, rumsoptimering, streaming och mer teknologi för att förenkla och upphöja din njutning.

Utsökt design

Ett modernt uttryck för tidlösa designprinciper, CINEMA 60 har det ikoniska Marantz-skottgluggsfönstret, symmetri och visuella referenser som representerar legendarisk Marantz-kvalitet.




Technical Specifications

POWER AMPLIFIER

• Number of Powered Channels     7
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)     100 W
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)     140 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive)     100 W
• 70% Guarantee     Yes
• Discrete Power Amplifier     Yes
• Amplifier Topology     Class A/B
• Current Feedback Topology     Yes
• Bi-Amp Drive:     assignable

MULTICHANNEL SURROUND TECHNOLOGIES

• DTS:     DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• Dolby:     Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Max Number of Processing (Preamp) Channels     7.2

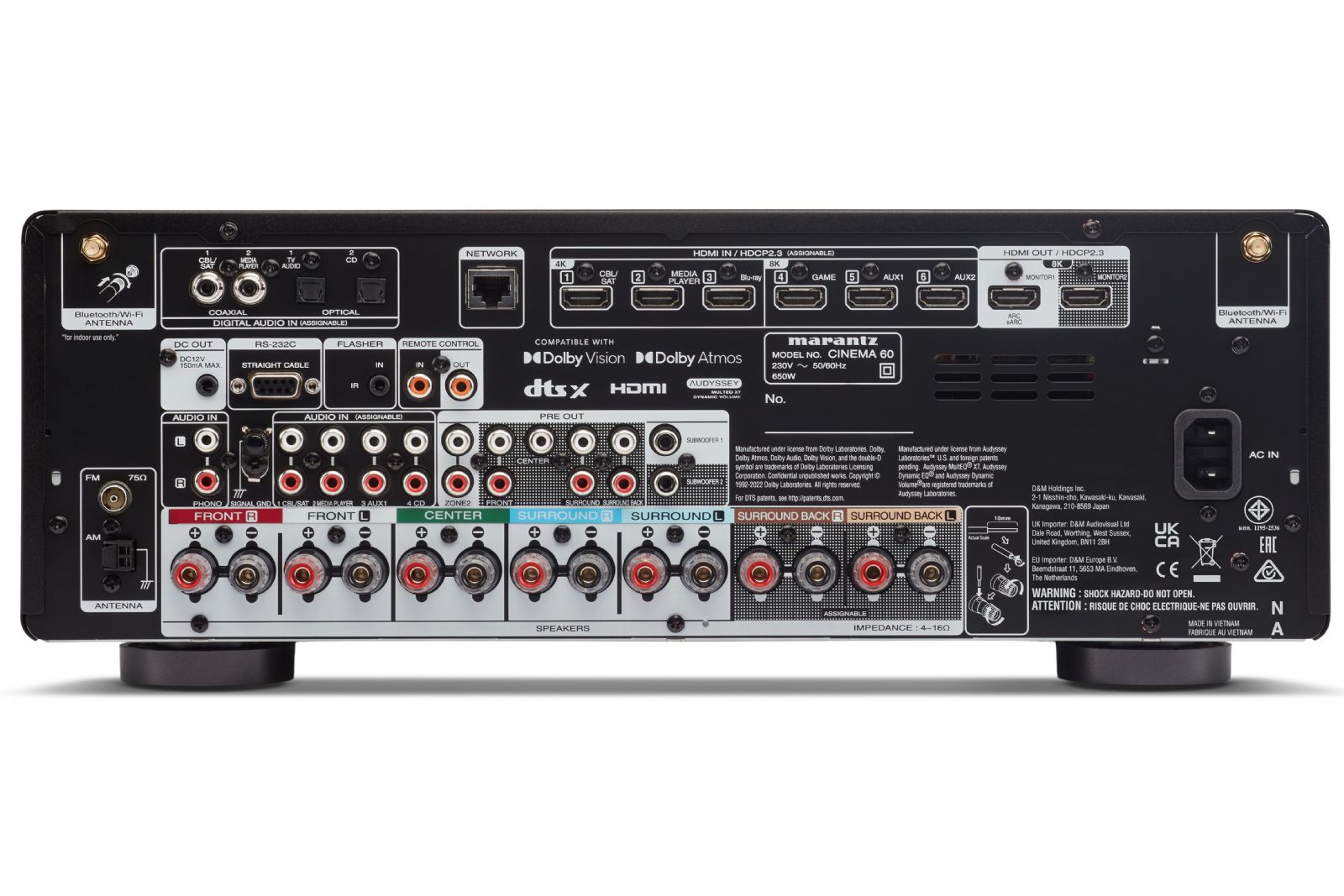

In- och utgångar

• Komposit in / ut     0 / 0
• Component in / ut     0 / 0
• HDMI in / ut (version x.x)     6 / 2
• Multi-Room Video Out via HDMI     0 / 0
• Analog In / Fixed Level Out     4 in / 0 out
• Phono (MM) in     Yes
• Digital in: optical / coaxial     2 / 2
• Multirum ut: analog / digital     1 / 0
• Multichannel Preamp Out     7.2
• Subwoofer ut     2
• 7.1 multikanals ingång     No
• Number of speaker terminals     7
• Högtalare A / B     assignable
• Multirum högtalarterminal     assignable
• Front Inputs     USB-A
• USB Audio     Yes / No / No
• FM Tuner with RDS     Yes
• DAB+ Tuner     YES* DAB version only at extra cost

HDMI

• Total HDMI Inputs / No. Support 8K     6 / 3
• HDCP2.3 support     Yes
• HDMI outputs main / zone     2 / 1
• Analog to HDMI Video Conversion     No
• HDMI Upscaling     1080P/4K to 8K
• Max resolution @ framerate
• Audio Return Channel     eARC
• Video Dynamic Range     HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
• ALLM (Auto Low Latency Mode) Pass-through for gaming     Yes
• Variable Refresh Rate / Quick Frame Transport     Yes / Yes / No
• HDMI Pass-Through in Standby Mode     Yes
• CEC     Yes
• DSD Audio over HDMI     No
• Auto LipSync     Yes

PERFORMANCE TECHNOLOGIES

• Copper Plated Chassis     No
• Toroidal Power Supply Transformer     No
• Hyper Dynamic Amplifier Modules (HDAM) (List version)     Yes
• Pure Direct Mode     Yes
• Gold Plated RCA Terminals     Yes
• Clock Jitter Reducer     No

Acoustic / Room Correction

• Audyssey:     MultEQ XT
• Audyssey Dynamic EQ / Dynamic Volume     Yes / Yes
• Audyssey LFC     No
• Dirac Live Support     No
• Variable Cross Over     Yes
• Optimized Bass Redirection     Yes
• Bass Sync     No

MUSIC FILE SUPPORT

• Lossy Formats     MP3 / WMA / AAC
• Lossless formats     FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
• DSD Audio     2.8 MHz / 5.6 MHz
• Gapless Playback     FLAC, WAV ,ALAC ,DSD
• Compressed Audio Enhancer: MDAX2     Yes
• Network Audio Sharing     Yes

STREAMING SERVICES

• HEOS Multi-room and Streaming     Yes
• AirPlay Audio Streaming     AirPlay2
• Internet Radio     TuneIn
• Spotify*     Spotify Connect
• Pandora     Yes
• SiriusXM     Yes
• Other Streaming Services *     Amazon Music HD/
• Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix

NETWORK CONNECTIVITY

• Ethernet Ports     Yes
• Wi-Fi (include version / band)     Yes
• Bluetooth (Include version)     Yes
• Bluetooth Re-transmit for Bluetooth headphones     Yes

SMART HOME INTEGRATION AND CONTROL

• Voice Assistant Compatibility     Alexa / Google Voice Assistant / Apple HomePod
• App for Smart Phones & Tablets (iOS & Android)     Marantz AVR App
• HEOS Multi-Room Integrated     Yes
• HEOS Link Compatibility: IR/ IP     Yes /Yes
• Multi-Room zones     2
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog     2 Ch / 2 Ch / Yes / Yes
• Zone Audio Output: Speaker / Preout     Yes / Yes
• Zone HDMI Output from HDMI Source     Yes
• Control Connectivity     IP Control / Web Control / App Control
• IR Flasher In     Yes
• Marantz Remote Bus     Yes
• DC Trigger Output     1
• HDMI Diagnostics     Yes

Övrigt

• Front Display     port hole OLED
• Primary Display Size (diagonal in/mm)
• Secondary Display Size (diagonal in/mm)
• GUI languages     9
• Setup Assistant     Yes
• Smart Select on Remote     Yes
• Firmware Update by Network / USB     Yes / Yes
• ECO Mode     Yes
• Auto Power off     Yes
• Sleep Timer     Yes

Generellt

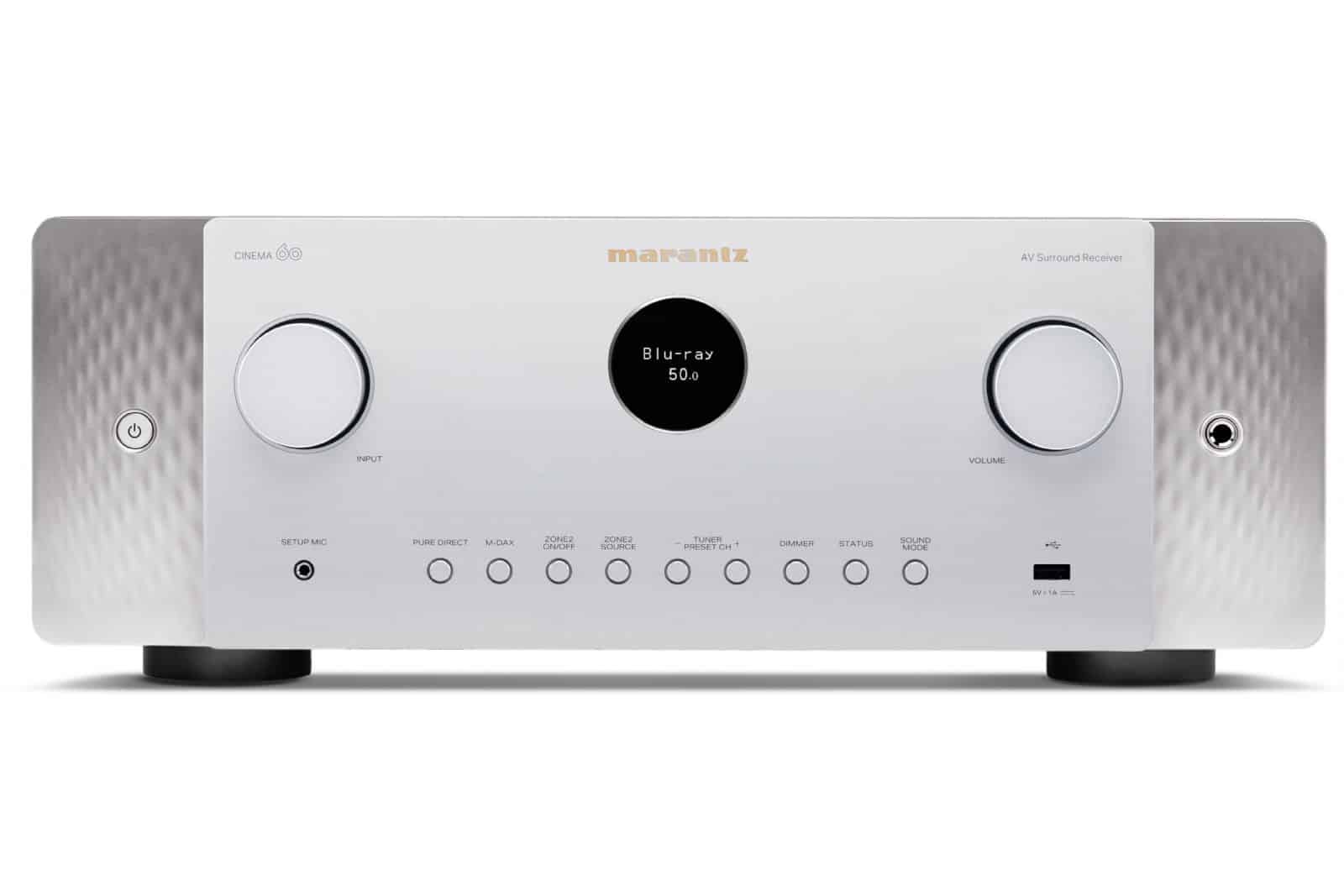

• Availabe colours     Black/Silver-Gold
• Frontpanel av metall     No

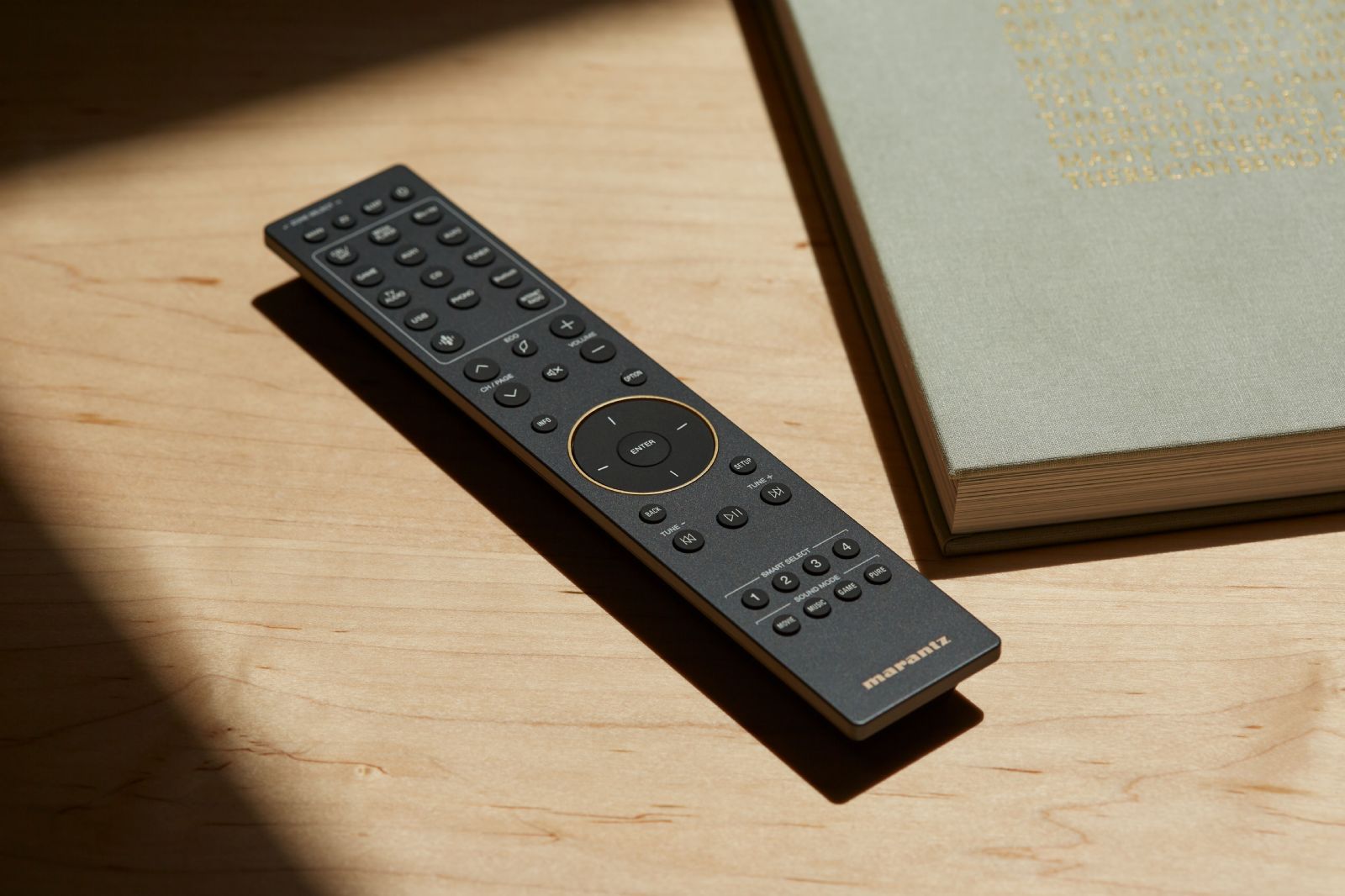

• Systemfjärrkontroll     RC-049SR
• Effektförbrukning i W     650
• Power consumption No-Sound (ECO on / off) in W     45 W / 75 W
• Standby effektförbrukning i W     0.2
• CEC Standby Consumption in W     0.5
• Network Standby Consumption in W     Less than 2.0
• Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】     442 x 354 x 165
( 442 x 354 x 235)
【 442 x 343 x 165 】
• Vikt i kg     10,9

• What's in the Box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
