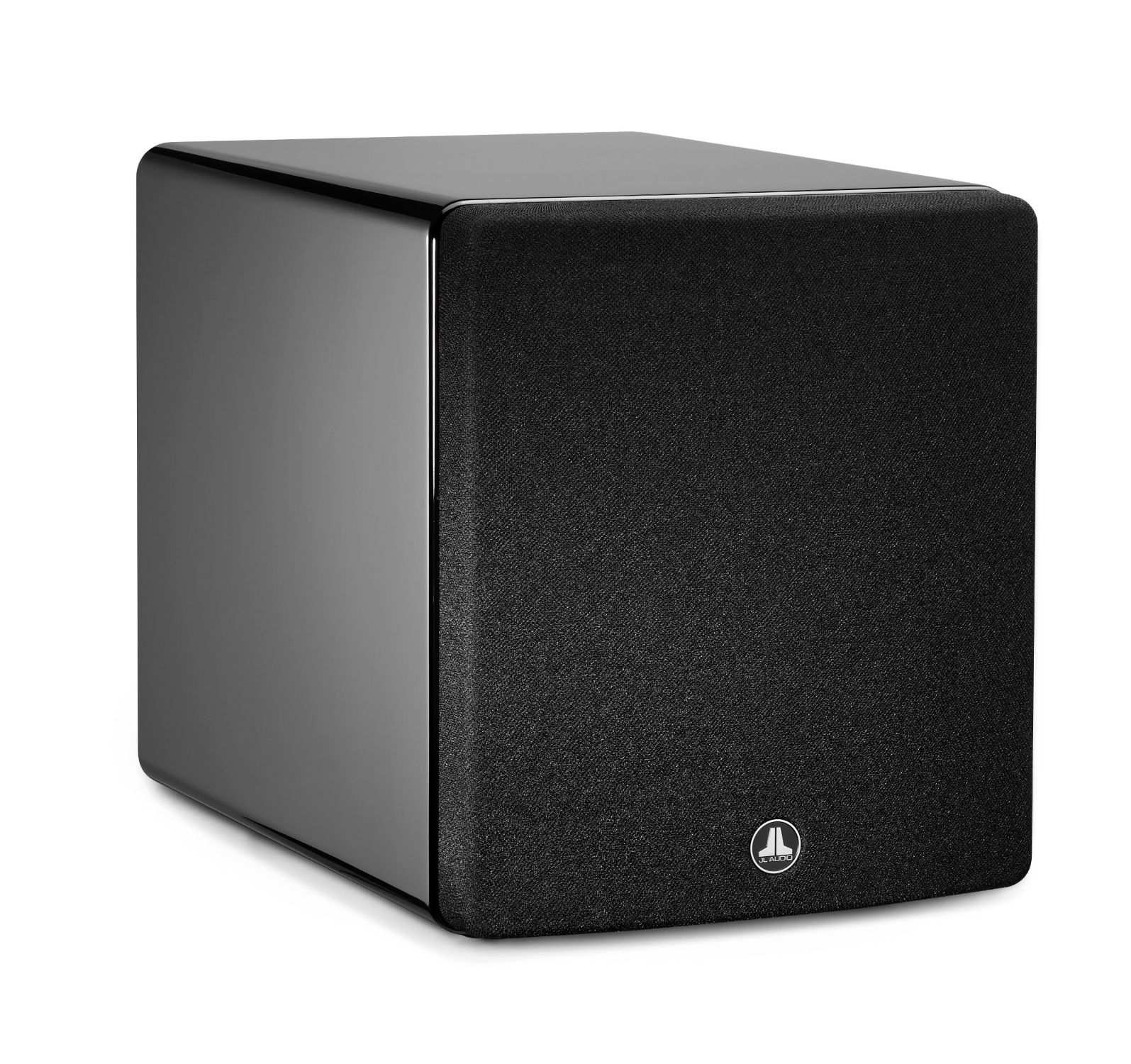

JL Audio Fathom F-110V2

JL Audio Fathom® f110v2-GLOSS
10-inch (250 mm) Powered Subwoofer, Black Gloss Finish


Powered Subwoofer with 10-inch Subwoofer, 1100 watts

The Fathom f110v2 is the most compact subwoofer in the Fathom lineup but is fully capable of delivering stellar performance in smaller spaces. The combination of an ultra-long throw W7 10-inch driver and a very powerful switching amplifier give it the kind of output normally associated with far larger subwoofer systems.

Because it is built with the same driver and amplifier technology as our flagship Gotham®, the f110v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.

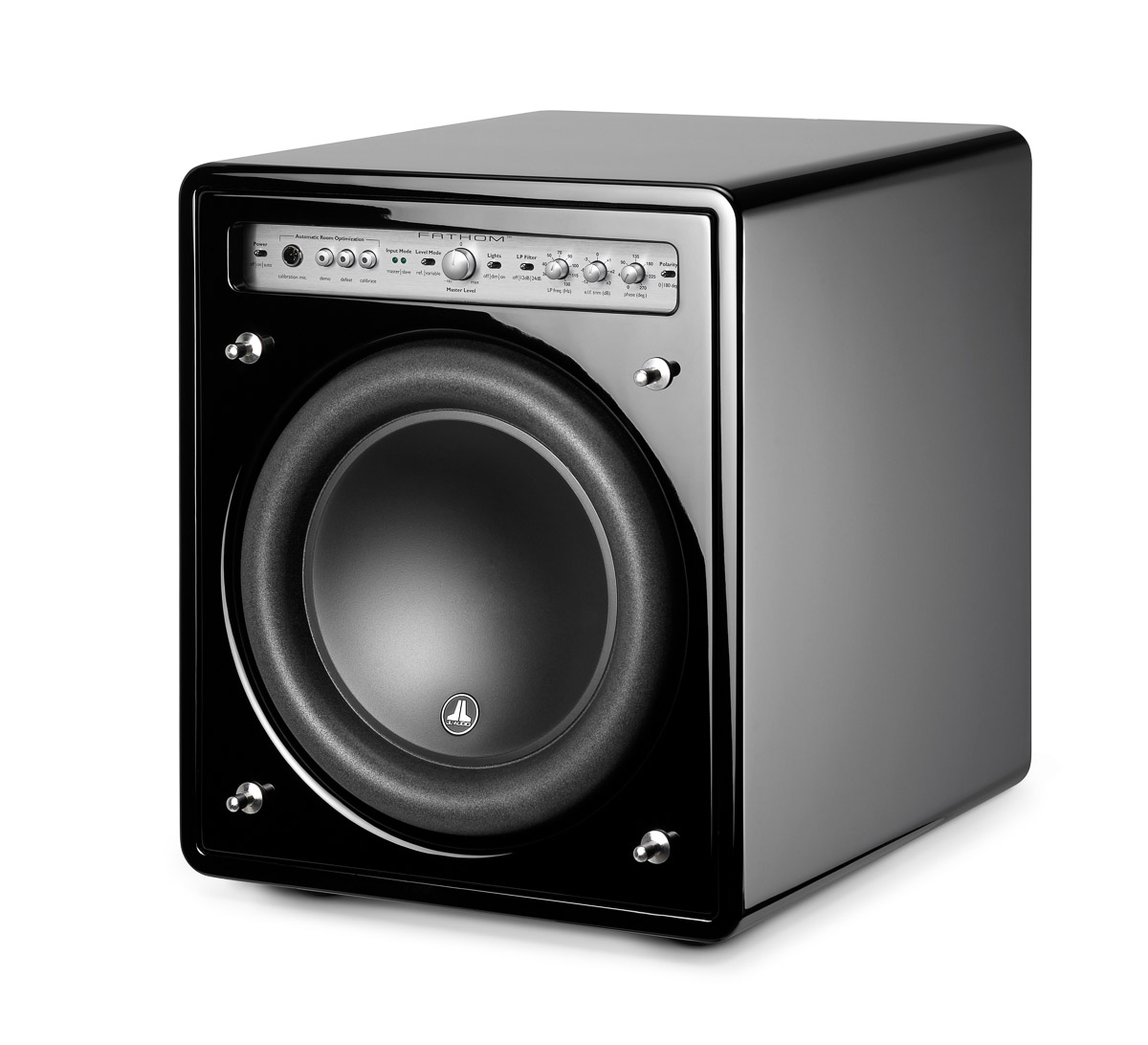

A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.

Finish: Gloss Black

Grille finish: Black fabric

Enclosure Construction: MDF

The challenges associated with designing high-output, compact subwoofer systems can be daunting. In most cases, designers sacrifice low-frequency extension or output
capability in order to keep a design acceptably small.

The Fathom® subwoofers sacrifice nothing, thanks to the dynamic advantages of their proprietary JL Audio drivers. These exceptional woofers allow for a true subwoofer
passband and very high output, while keeping distortion well below audible thresholds. To extract full benefit from the excursion envelope of its woofer design, each Fathom® employs an uncommonly powerful switching amplifier with a large toroidal transformer and a patented circuit, designed to enhance control and fidelity.

The compact design and conventional form factor of the Fathoms apply beautifully to most home theater applications, including built-in designs. Front-mounted controls make them comfortable to set up and adjust, while JL Audio’s powerful DSP engine and exclusive
Digital Automatic Room Optimization makes sure that response is smooth, even in challenging rooms.

As the smallest subwoofer in the Fathom® lineup, the f110v2 is ideal for smaller rooms and installations requiring an unobtrusive solution that delivers world-class low-frequency performance.

JL Audio Fathom® f110v2 Features:

Unbalanced Inputs:
Stereo or Mono (two RCA jacks)

Balanced Inputs:
Stereo or Mono (two female XLR jacks)

Output To Slave:
Balanced (one male XLR jack)

Input Modes:
Master or Slave

Level Modes:
Reference (fixed gain) or Variable from full mute
to +15 dB over reference gain

Power Modes:
Off, On or Automatic Signal-Sensing

Light Modes:
Off, On or Dim

Low Pass Filter Mode:
Off, 12 dB per octave or 24 dB per octave

Low Pass Filter Crossover Frequency:
Variable from 30 Hz – 130 Hz

Polarity:
0 or 180 degrees

Phase:
Variable from 0 – 280 degrees, referenced to 80 Hz

E.L.F. Trim:
Variable from –12 dB to +3 dB at 25 Hz

Digital Automatic Room Optimization (D.A.R.O.):
18-Band, with included, laboratory-grade
calibration microphone, defeatable


JL Audio Fathom® f110v2 Specifications:

Enclosure Type:
Sealed

Driver:
Single 10-inch (nominal diameter)

Frequency Response: (anechoic)
27 – 111 Hz (±1.5dB)
–3 dB at 25 Hz / 120 Hz
–10 dB at 19 Hz / 155 Hz

Effective Piston Area:
60 sq. in. (0.0387 sq. m)

Effective Displacement:
160 cu. in. (2.6 liters)

Amplifier Power:
1.1 kW RMS short-term

Dimensions (H x W x D):
397 mm x 328 mm x 439 mm

Net Weight:
32 kg

Cabinet Finish:
High-Gloss Black

Built in USA with Global Components
