Rega Fono MC MK4
4 490 SEK
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Vi prismatchar gärna!
- Frågor? Ring oss! 08-520 21347
- Flera olika betalningslösningar
- Fri frakt på order över 3000:-
Behöver Du hjälp? Hör av dig! Ingen fråga är för dum för att ställa!
Beskrivning
Art.nr: 181
Rega Fono MC är ett exceptionellt högkvalitativt riaa-steg för MC-pickuper!
Detta är utformat för att maximera potentialen hos alla MC-pickuper.
Fono MC använder en linjär förstärkare med låg ljudnivå LSK389 FET i ett helt
diskret ingångssteg där lågt brus och linjäritet är avgörande för att
få ut det mesta av en MC-pickup. På grund av FET:s höga
ingångsimpedans är effekten av förstärkarkretsen minimala
och påverkar inte pickupens prestanda.
Product Details
The Rega Fono MC has been designed to be effective, easy to use, and above all, to reproduce music. The Fono MC uses the Linear Systems low noise LSK389 FET in an all discrete input stage where low noise and linearity are vitally important to get the best from an MC cartridge. Because of the high input impedance of FET, the loading effects of the amplifier circuit are minuscule and do not affect the performance of the cartridge.

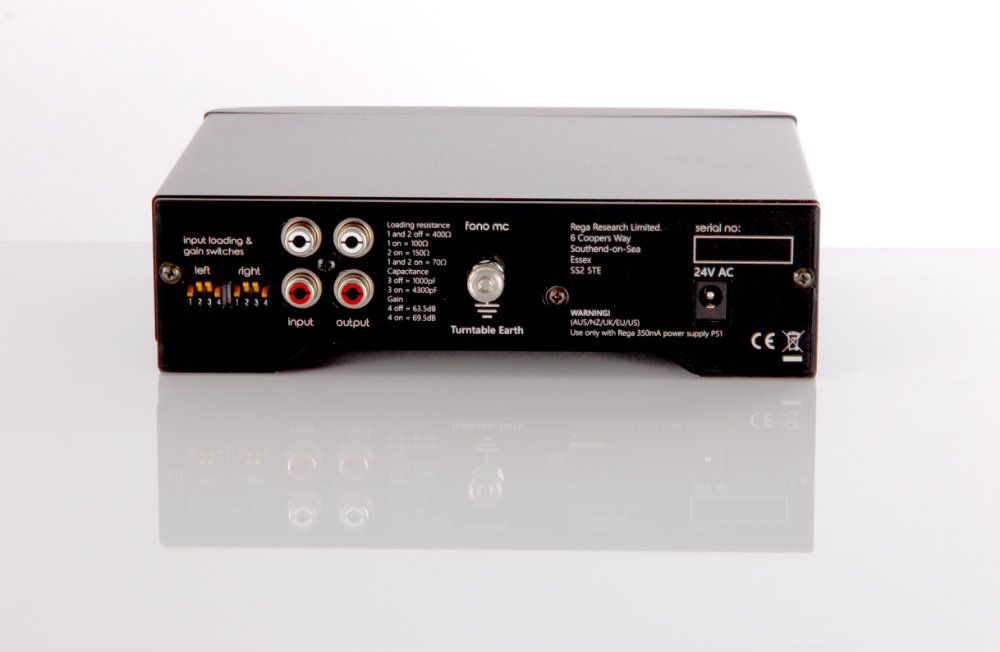

A MUSE operational amplifier is used in the RIAA equalization amplifier. Polypropylene capacitors have been used in the signal path and in the RIAA equalization circuits. There is selectable input loading for both resistance and capacitance along with two different gain settings located on the back panel making the Fono MC compatible with most low output MC cartridges.

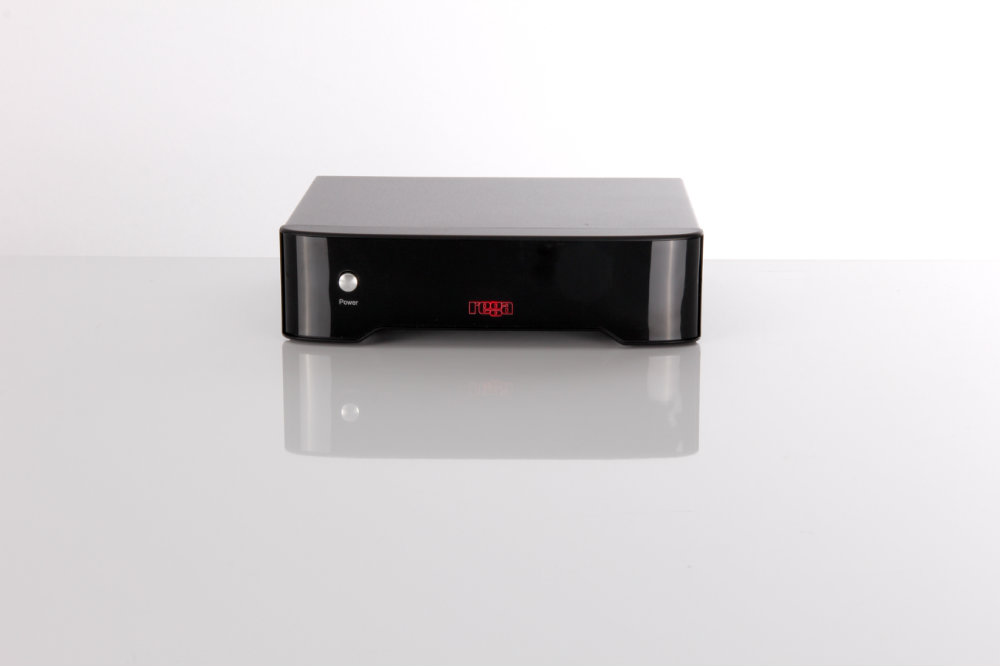

The aesthetic design of the Fono MC was as important as the quality of its electrical capabilities, so it benefits from the same aluminium case as the Rega TTPSU and Fono MM amplifier, giving it a design which offers a familiar feel and moreover brings it in line with its illustrious bigger brothers. The new Fono MC circuit resulted from the design work carried out on the Aria phono amplifier.
Technical Specification
The Fono disk stage is designed to amplify the signal from a moving coil cartridge to a level which can feed into a 200mV line level input on a standard hi-fi amplifier.
Specifications
Output impedance = 200Ω
Recommended minimum output load resistance = 5K
Frequency response (50KΩ output load) = 13Hz (-3dB) to 100KHz (-0.3dB)
RIAA accuracy (50KΩ output load) = Better than +/-0.2dB 100Hz to 100KHz
Power requirements = 24V AC at 150mA maximum. Only to be used with Rega PS1.
Input sensitivity (for 200mV output)
4 off = 133uV
4 on = 67uV
Input loading resistance
1 and 2 off = 400Ω
1 on = 100Ω
2 on = 150Ω
1 and 2 on = 70Ω
Input loading capacitance
3 off = 1000pF
3 on = 4300pF
Gain (at 1KHz)
4 off = 63.5dB
4 on = 69.5dB
Maximum input level (at 1KHz)
4 off = 6.7mV
4 on = 3.4mV
Load settings for adjustable MC stages
Impedance -100ohm
Capacitance - 1000pF
Gain setting - High ('On' position for Rega phono stages)
Fono MC dip switches settings (factory set at Rega for Rega MC models).
